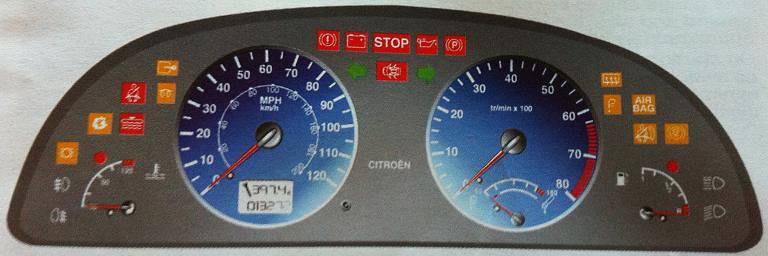

Citroen Xsara Dashboard Light Symbols

Dashboard warnings on your Citroen Xsara series depend on the Citroen Problem. It could be an indicator light for ABS, airbag, engine light or something else. There are many reasons why the dashboard shows warning lights and below is a list of the lights on the dashboard. You might need to buy a scanner online which will show Citroen trouble codes & reset the warning light for good!
The following symbols have been taken from a Citroen Xsara . The best Citroen diagnostic kit on the market right now is the Lexia 3 kit . It will do so much more that standard code readers, yet costs roughly the same. It will read codes, clear codes, switch off airbag lights etc & much much more.

If you need to change any sensors in your Citroen, visit www.bavariandominator.co.uk

xsara dash warning light Citroen Xsara Direction indicator, left

xsara dash warning light Citroen Xsara Direction indicator, right

xsara dash warning light Citroen Xsara Dipped beam

xsara dash warning light Citroen Xsara Main beam

xsara dash warning light Citroen Xsara Rear foglamp

xsara dash warning light Citroen Xsara Front foglamps

xsara dash warning light Citroen Xsara Electric demisting

xsara dash warning light Citroen Xsara Coolant level warning lamp, if it lights up you need to check the level and possibly fill up if neccesary

xsara dash warning light Citroen Xsara Engine oil pressure, if it lights up while driving - stop the engine and check the oil level - you will probably need to fill up. If the levels are correct the chances are the sensor has failed and you will need to replace. Check with a garage. You can buy replacement sensors from www.bavariandominator.co.uk

xsara dash warning light Citroen Xsara Engine oil level. This light should go out shortly after engine start up if the engine oil levels are within the limits.

xsara airbag dash warning light Citroen Xsara Front airbag warning light. This light will only illuminate if there is a problem with the airbag system. You find the airbag fault codes & reset the codes by using the Lexia 3 kit, which plugs into your diagnostic port & hooks upto your laptop.

xsara dash warning light Citroen Xsara Engine auto diagnostics. If it flashes while driving it indicates a fault within the fuel injection or ignition system. You need to use a diagnostic code reader/fault scanner such as the Lexia 3 kit. If you do not have a laptop you will need to buy a stand alone code reader as found in the Citroen code reader section

xsara dash warning light Citroen Xsara Battery charge - if the light stays on suring driving it means it is not getting the correct charge and could be a an alternator problem. We advise to get checked at the garage.

xsara dash warning light Citroen Xsara Hydraulic level warning light, this light will appear on the dashboard when the brake fluid level is low, you are advised to top up straight away.

xsara dash warning light Citroen Xsara Stop driving immediately and seek urgent assistance, any further driving could seriously damage your engine.

xsara dash warning light Citroen Xsara Preheating will light up with the ignition in position (diesel engines only)

xsara dash warning light  Citroen XsaraHandbrake warning light - indicates that th handbrake has not been fully released.

xsara dash warning light  Citroen XsaraDrivers seatbelt not buckled  - fasten your seatbelt.

xsara dash warning light  Citroen XsaraDoor open warning light, one of the doors in not correctly closed, please check the doors.

xsara dash warning light Citroen Xsara Front brake pads wear, if this lamp comes on when the brake pedal is pressed then the brakepads should be checked and probably be changed.

xsara dash warning light Citroen Xsara ABS warning light - indicates a problem with the ABS (anti lock braking system) Use the Lexia 3 kit or get it checked at your local garage

xsara dash warning light  Citroen XsaraElectronic ignition key.

xsara dash warning light Citroen Xsara Engine coolant temperature warning - if this lamp comes on check the coolant levels and top up if needed.

xsara dash warning light Citroen Xsara Side airbag operation warning light.

xsara dash warning light Citroen Xsara Low fuel level. fill up.



xsara dash warning light

Click to view a video of the Citroen Dash Symbols from the handbook
