Mini Hatch R50 R52 R53 Dashboard Light Symbols

Dashboard warnings lights symbols on your Mini R50 R52 R53 (One, Cooper, Cooper S, Convertible & JCW) depend on the Mini Problem. It could be an indicator light for ABS, airbag, engine light or something else. There are many reasons why the dashboard shows warning lights and below is a list of the lights on the dashboard. You might need to buy a scanner online which will show Mini trouble codes & reset the warning light for good!
If you need to reset a dashboard light or diagnose a fault on your Mini Cooper we recommend the Mini iCarsoft i910 kit from.

If you need a new sensors to fix your Mini Cooper such as ABS sensor, MAF, camshaft & crankshaft, visit www.bavariandominator.co.uk.

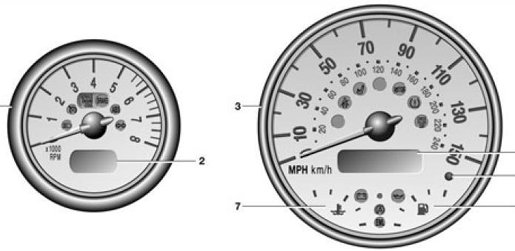

The following symbols are all taken from the Mini models (some symbols will vary slightly, but in general they should all look quite similar)

Mini Hatch & Convertible R50 R52 R53 check engine light (also known as the Service Engine Soon' warning lamp). This symbol indicates a malfunction within the engine system, and needs to be diagnosed and fixed quickly to prevent any damage to your engine. Diagnostic World recommends using the Mini iCarsoft i910 to read fault codes in this system. The kit will give you trouble codes, and tell you where the problem is, once the problem is fixed the engine light can be turned off. In most cases this will be because of a fault sensor such as camshaft sensor, map sensor or ignition coil. Watch us diagnose & reset the check engine light in a Mini Cooper.

Mini Hatch & Convertible R50 R52 R53 airbag warning light. If this airbag light is illuminated during normal operating conditions it means there is a fault within the airbag system. It could be a loose connection, or it could be slightly more complicated. To locate the fault in the system you will need to use an airbag diagnostic tool. If your mini was made 2003 or before you can use the B200 airbag reset tool, and if your Mini was made after 2003 you will need the slightly more advanced multi system Mini iCarsoft i910 diagnostic kit. The airbag light reset tools will turn off the dash light, and give you a trouble codes. Watch us turn off the airbag light in a Mini Cooper with the i910 kit.

Mini Hatch & Convertible R50 R52 R53 ABS warning light or Anti Lock Braking system warning light - the chances are that you will need to replace an ABS sensor. ABS sensors are quite cheap and can be fitted by any home mechanic. We recommend you visit Dominator Auto Diagnostics for Mini ABS sensors. If you are unsure which mini abs sensor you need you will need to use a code reader which covers the ABS system, we highly recommend using the Mini iCarsoft i910 diagnostic kit. Watch our video as we diagnose & replace a faulty Mini ABS Sensor.

Mini Hatch & Convertible R50 R52 R53 EML warning light is an engine electonic malfunction. You can continue to drive the car, but with reduced power, this is known as limp mode. You will need to diagnose the fault & have the codes reset to remove the car from limp mode. To do this Diagnostic World recommends using the Mini iCarsoft i910. Watch us diagnose an EML warning light on a Mini Cooper.

Mini Hatch & Convertible R50 R52 R53 flat tyre warning light - one or more tyres is not inflated to the correct pressure, pump up your tyres or your driving experience will deteriorate.

Mini Hatch & Convertible R50 R52 R53 automatic stability control or traction control warning light - this could be to current road conditions and basically means that your Mini is not getting the required traction on the road.

Mini Hatch & Convertible R50 R52 R53 seatbelt warning light - fasten your seatbelt - be sensible :-)

Mini Hatch & Convertible R50 R52 R53 engine oil pressure warning light - stop the vehicle as soon as possible if this oil warning light shows up during normal operating conditions. You will need to check the oil levels and top up as required.

Mini Hatch & Convertible R50 R52 R53 cruise control warning light - simply indicates that the cruise control system is activated.

Mini Hatch & Convertible R50 R52 R53 coolant temperature warning light - if this illuminates during normal operating conditions it means that the engine is tool hot. You may need to top up the coolant, if this does not switch off the warning light we would advise that you contact your local mini dealer immediately.

Mini Hatch & Convertible R50 R52 R53 brake pads warning light - if the brake pads warning symbol is illuminated it means that the pads need to be changed very soon. It is advised that you attend to this without further delay.

Mini Hatch & Convertible R50 R52 R53 brake warning lamp  - if this light comes on when the handbrake is not engaged you will need to check the brake fluid levels and top up as required. This symbol may also appear with the ABS warning light - see above.

Mini Hatch & Convertible R50 R52 R53 bonnet or tailgate warning light - this will light up when the bonnet or tailgate is open.

Mini Hatch & Convertible R50 R52 R53 battery charge current warning light - this light illuminated during normal operating conditions means the battery is no longer being charged. It could mean that the battery needs replacing or you need to repair/replace your alternator.
mini cooper dashboard


If you see the ABS light appear on your Mini Cooper , the chances are you need to replace an ABS sensor. You are advised to use the C110 or I910 iCarsoft to find out which ABS sensor needs to be replaced, and then visit www.bavariandominator.co.uk to find the BMW ABS sensor for your vehicle
