Fiat 500 Dashboard Light Symbols

Dashboard warnings on your Fiat 500 depend on the Fiat Problem. It could be an indicator light for ABS, airbag, engine light or something else. There are many reasons why the dashboard shows warning lights and below is a list of the lights on the dashboard. You might need to buy a scanner online which will show Fiat trouble codes & reset the warning light for good!
If you need to reset a dashboard light or diagnose a fault on your Fiat 500 we would recomend the Autel MD 704

If you need a new sensor to fix your Fiat 500 such as ABS sensor, MAF, camshaft & crankshaft, visit www.bavariandominator.co.uk.

Fiat 500 dash light

Fiat 500 engine warning light - this light will stay illuminated if there is a malfunction within the engine after start up - we would advise you to use the Autel GS500 kit to diagnose the engine problem, the kit will also clear the codes & reset the dashboard light.

Fiat 500 ABS warning light - indicates a problem within the ABS or Anti Lock Braking System. You need to hook this upto a diagnostic kit that covers the ABS module such as the Autel MD704 kit . It could be that an ABS sensor needs to be replaced - if this is the case you should visit www.bavariandominator.co.uk for your ABS sensors
Fiat 500 airbag dash light

Fiat 500 SRS airbag warning light - indicates a problem within the airbag system and needs to be checked out ASAP. You should use a diagnostic tool which covers the airbag system such as the the Autel MD704. The kit will tell you where within the airbag system the fault is occuring, and also allow you to clear the dashboard airbag light.
Fiat 500 dash light

Fiat 500 fuel warning light - indicates that the reserve fule is now being used and you should fill up at the next service station.
Fiat 500 dash light

Fiat 500 front fog lights warning light
Fiat 500 dash light

Fiat 500 parking lights warning light
Fiat 500 dash light

Fiat 500 low beam headlamps warning light
Fiat 500 dash light

Fiat 500 high beam warning light
Fiat 500 coolant dash light

Fiat 500 coolant warning light - warns of an overheated engine condition. The engine coolant temperature indicator will illuminate and a single chime will sound after reaching a set threshold.
Fiat 500 dash light

Fiat 500 tyre pressure warning light - check your tyre pressures as one or more tyres needs to be pumped up.
Fiat 500 dash light

Fiat 500 seatbelt warning light - buckle up!
Fiat 500 dash light

Fiat 500 turn signal warning lights - illuminate when turning left, right or using hazard lights.

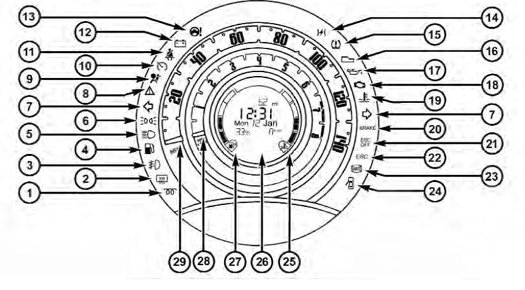

500 dashboard
1 - Fiat 500 glow plug light
2 - Fiat 500 rear defrost button
3 - Fiat 500 front fog light indicator (if equipped)
4 - Fiat 500 low fuel light
5 - Fiat 500 high beam indicator
6 - Fiat 500 park/headlights ON indicator
7 - Fiat 500 turn signal indicators
8 - Fiat 500 generic warning light
9 - Fiat 500 airbag warning light (use the Autel MD704)
10 - Fiat 500 cruise control indicator (if equipped)
11 - Fiat 500 seat belt reminder light
12 - Fiat 500 battery charging system light
13 - Fiat 500 power steering system warning light
14 - Fiat 500 electronic throttle control warning light
15 - Fiat 500 tyre pressure warning light
16 - Fiat 500 automatic gearbox failure warning light
17 - Fiat 500 oil pressure warning light
18 - Fiat 500 malfunction indicator lights (MIL) (Use the Autel GS500)
19 - Fiat 500 engine temperature warning light
20 - Fiat 500 brake warning light
21 - Fiat 500 electronic stability control warning light (ESC OFF)
22 - Fiat 500 electronic stability control malfunction warning light
23 - Fiat 500 ABS ant lock braking system warning light (Use the Autel MD704)
24 - Fiat 500 door open warning light
25 - Fiat 500 temperature gauge warning light
26 - Fiat 500 odometer/trip counter display area
